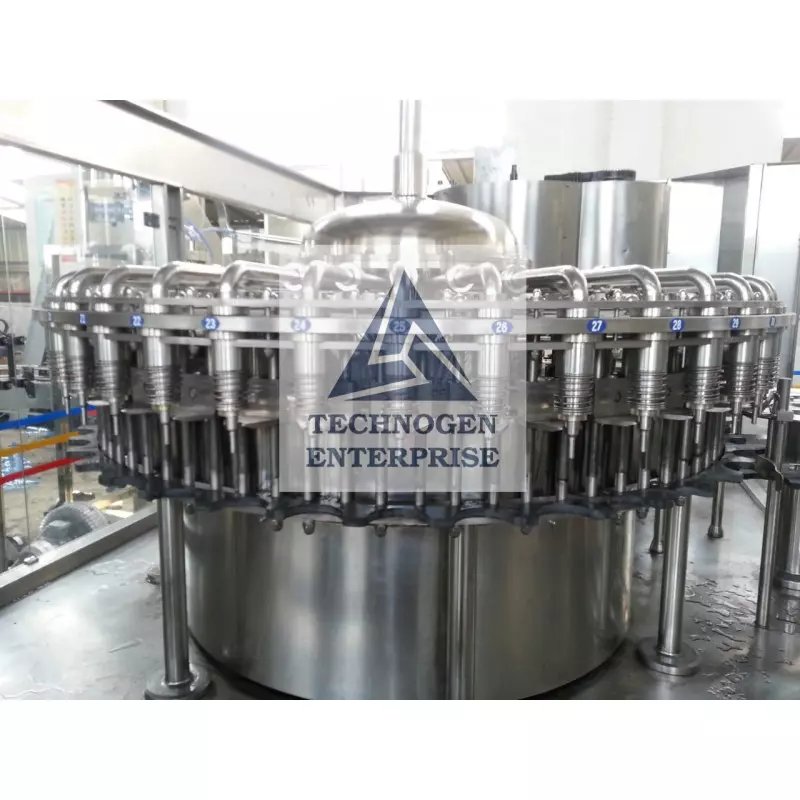

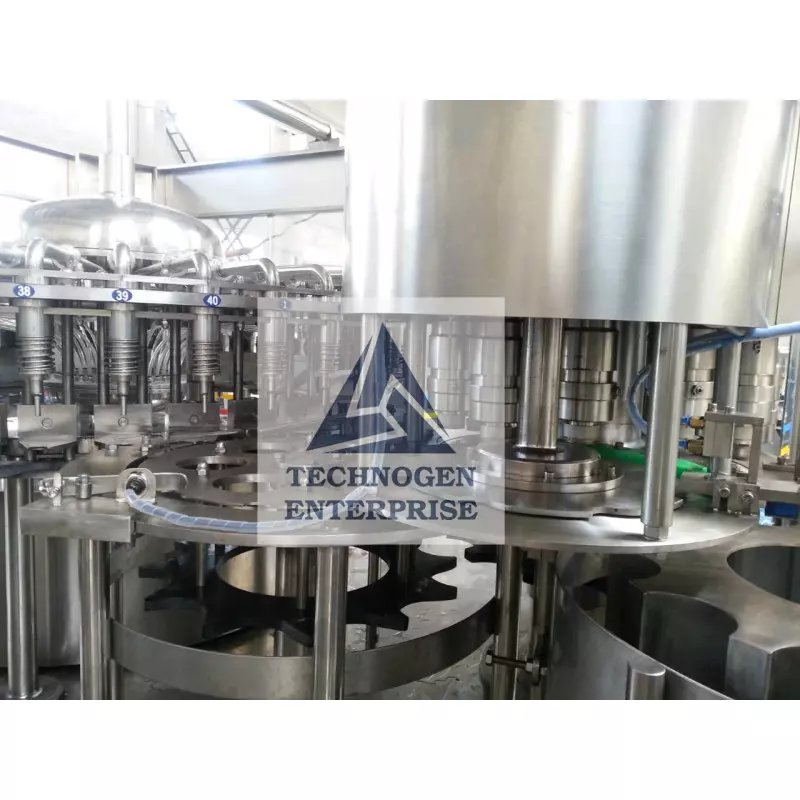

Rinsing Filling Capping (RFC) Water Bottle Machine

Product overview

A water bottling line becomes significantly simpler when rinsing, filling and capping are synchronized within one machine instead of being handled by three independent units.

The Rinsing Filling Capping Water Bottle Machine integrates these three operations into one coordinated packaging process.

Technogen Enterprise serves water bottling and mineral water plants as a Manufacturer and Supplier of Rinsing Filling Capping Water Bottle Machine systems for Tanzania, offering production configurations from 24 to 90 bottles per minute for 1000 ml bottles.

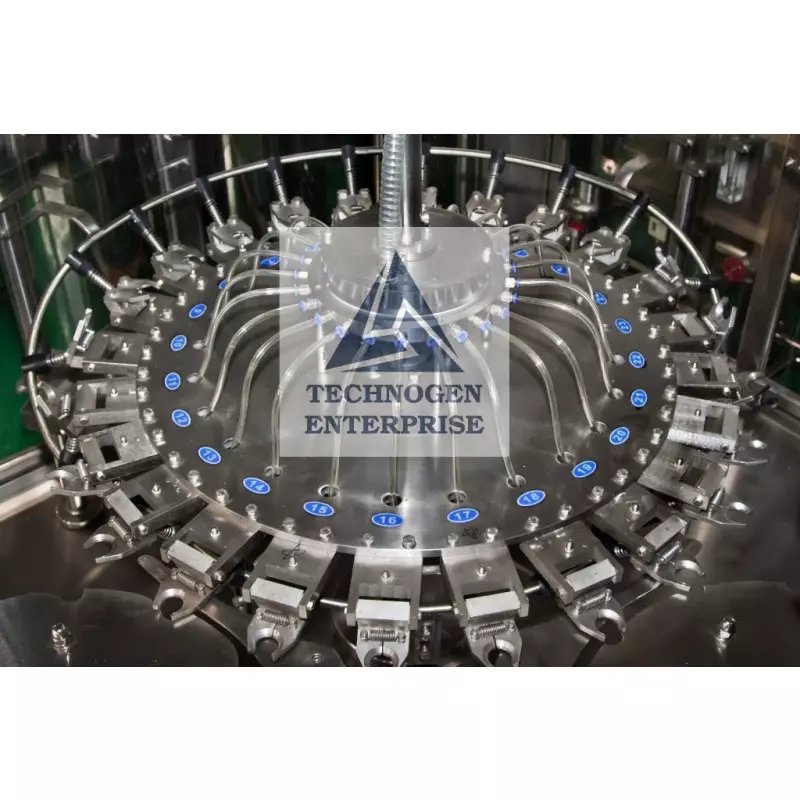

Bottle handling uses a rotary neck-holding principle, maintaining controlled container positioning as bottles pass through rinsing, filling and capping.

An air-blow conveyor transfers bottles into the machine from the in-feed side.

The operating logic incorporates No Bottle–No Rinse–No Fill–No Cap, ensuring that the corresponding packaging operation is performed only when a bottle is available in the relevant machine position.

After rinsing, bottles move to the filling station where water is dispensed with stated filling accuracy of ±1%.

The filled bottles subsequently enter the screw-capping section. Caps are automatically supplied through a vibrator feeder and chute before being placed onto the bottles using a pick-and-place mechanism.

Magnetic hysteresis capping heads complete the screw-capping operation.

The range accommodates water bottles from 100 ml to 1000 ml and is available with different numbers of rinsing, filling and capping heads according to required production capacity.

For Tanzania mineral-water and packaged-water producers, the monoblock arrangement reduces product transfers between separate machines and provides a direct route from empty bottle in-feed to rinsed, filled and capped bottle discharge.

Working principle

• Empty water bottles enter the machine through the air-blow in-feed conveyor.
• The rotary neck-holding system captures and transports the bottles towards the rinsing section.
• Bottles are rinsed before moving automatically towards the filling station.
• The machine confirms bottle presence through the No Bottle–No Rinse–No Fill–No Cap system.
• At the filling section, the required quantity of water is dispensed into each container.
• The filled bottle moves towards the screw-capping station.
• Caps stored in the vibrator feeder are oriented and transferred through the chute.
• The pick-and-place mechanism positions the cap on the bottle neck.
• Magnetic hysteresis capping heads complete screw tightening.
• The capped bottles are discharged towards compatible downstream packaging equipment such as a shrink tunnel, labeling machine or inkjet printer.
• Machine speed can be adjusted using the Variable Frequency Drive.

Salient features

• Compact Monoblock Design : Combines rinsing, filling and capping in one integrated machine.
• Heavy Construction : Provides stable operation during continuous water bottling.
• Rotary Neck Holding : Holds bottles from the neck during processing.
• Accurate Water Filling : Filling accuracy is specified at approximately ±1%.
• Air-Blow Bottle In-Feed : Transfers empty bottles into the main machine.
• No Bottle–No Rinse–No Fill–No Cap : Prevents unnecessary operation when a bottle is absent.
• Pick-and-Place Screw Capping : Transfers oriented caps to bottle necks before tightening.
• Automatic Cap Feeding : Vibrator feeder and chute supply caps to the capping station.
• Magnetic Hysteresis Capping Heads : Provides controlled screw-capping operation.
• Speed Indicator : Displays operating speed at the main panel.
• Variable Speed Control : VFD allows production-speed adjustment.
• Multiple Bottle Volumes : Handles water bottles from 100 ml to 1000 ml.
• Easy-Clean Nozzles : Openable nozzle construction facilitates cleaning access.
• Low-Grammage Bottle Handling : Designed to handle compatible low-grammage preform bottles without distortion.
• Downstream Line Compatibility : Can connect with shrink tunnels, labeling machines and inkjet printers.

Safety & interlocks

• No Bottle–No Rinse : Prevents the rinsing cycle when no bottle is present.
• No Bottle–No Fill : Prevents water filling when the filling station is empty.
• No Bottle–No Cap : Prevents capping operation when no bottle is available.

Applications & industries

The Rinsing Filling Capping Water Bottle Machine is developed specifically for:

• Packaged drinking water production.
• Mineral water bottling plants.
• Water bottle rinsing.
• Automatic water bottle filling.
• Automatic screw capping.
• Integrated water packaging lines.

The machine handles bottle capacities from 100 ml to 1000 ml, while the technical production outputs are specified on the basis of 1000 ml bottles.

It can be integrated with downstream shrink-wrapping, labeling and coding systems to create a more complete water-bottling line.

For Tanzania water bottling operations, five machine capacities allow the monoblock to be selected according to the targeted production output.

Application items

• Packaged drinking water bottling.
• Mineral water bottling.
• Water bottle rinsing.
• Water bottle filling.
• Automatic screw capping.
• 100 ml water bottle packaging.
• 500 ml water bottle packaging.
• 1000 ml water bottle packaging.
• Integrated RFC water bottling.
• High-speed water bottle packaging.
